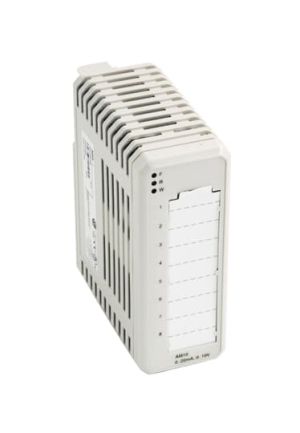

I/O SYSTEMS – S800 I/O – AI810

The AI810 Analog Input Module has 8 channels. Each channel can be either a voltage or current input. The current input is able to handle a short circuit to the transmitter supply at least 30 V d.c without damage. Current limiting is performed with a PTC resistor. The input resistance of the current input is 250 ohm, PTC included.

The voltage input is able to withstand an over or undervoltage of at least 30 V d.c. Input resistance is 290k ohm. Transmitter supply can be connected to L1+, L1- and/or L2+, L2-.

Features and Benefits

  • 8 channels for 0…20 mA, 4…20 mA, 0…10 V or 2…10 V d.c., single ended unipolar inputs
  • 1 group of 8 channels isolated from ground
  • 12 Bit resolution
  • Input shunt resistors protected to 30 V by PTC resistor
  • Analog inputs are short circuit secured to ZP or +24 V
  • The input withstand HART communication.
Article number 3BSE008516R1
Type Analog Input
Signal specification 0..20mA, 4..20mA, 0..10V, 2..10V
Number of channels 8
Signal type Unipolar single ended
HART No
SOE No
Redundancy No
High integrity No
Intrinsic safety No
Mechanics S800
