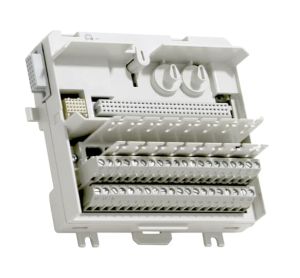

I/O MTUS – S800 I/O – TU834

The TU834 MTU can have up to 8 I/O channels and 2+2 process voltage connections. Each channel has two I/O connections and one ZP connection. Input signals are connected via individual shunt sticks, TY801. The maximum rated voltage is 50 V and maximum rated current is 2 A per channel. The MTU distributes the ModuleBus to the next MTU. It also generates the correct address to the I/O modules by shifting the outgoing position signals to the next MTU.

The MTU can be mounted on a standard DIN rail. It has a mechanical latch that locks the MTU to the DIN rail.

Features and Benefits

  • Complete installation of I/O modules using 2-wire connections and field power distribution.
  • Up to 8 channels of field signals and process power connections.
  • Mechanical keying prevents insertion of the wrong I/O module.
  • Latching device to DIN rail for grounding.
  • DIN rail mounting.
  • Include 8 individual shunt sticks.
Article number 3BSE040364R1
Type Extended
Connection Terminal block
Channels 8
Voltage 50 V
Mounting Both directions
Mounting detail 55 ºC (131 °F)
Use with I/O AI880 and AI880A
Process connections 40
up to 8 I/O channels (2 terminals per channel)
4 Process power
20 Process power (0 V)
Single/redundant I/O Single
