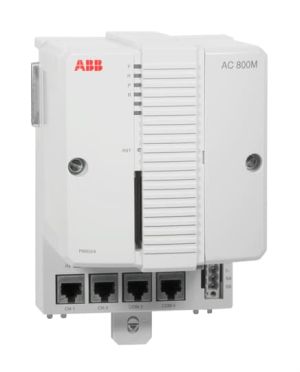

AC 800M Controllers – PM856AK01

The CPU card includes a microprocessor and RAM memory, a real-time clock, LED indicators, an INIT push button, and a CompactFlash interface.

The baseplate of the PM856A controller houses two RJ45 Ethernet ports (CN1, CN2) and two RJ45 serial ports (COM3, COM4) for connecting to the Control Network. One of the serial ports (COM3) is an RS-232C port with modem control signals, while the other port (COM4) is isolated and used for connecting a configuration tool.

Simple DIN rail mounting/removal operations are carried out using a unique slide and lock mechanism. All baseplates are equipped with a unique Ethernet address, which provides a hardware ID to each CPU. The address can be found on the Ethernet address label attached to the TP830 baseplate.

Features and Benefits

  • Reliability and simple fault diagnosis procedures
  • Modularity, allowing for step-by-step expansion
  • IP20 Class protection without the requirement for enclosures
  • The controller can be configured with 800xA control builder
  • The controller has full EMC certification
  • Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.)
Article number 3BSE066490R1 (PM856AK01)
Redundancy No
High Integrity No
Clock Frequency 24 MHz
Performance, 1000 boolean operations   0.46 ms
Performance 0.46 ms
Memory 16 MB (from 800xA 5.1 FP4)
RAM available for application 10.337 MB (from 800xA 5.1 FP4)
Flash memory for storage Yes
